Oneplus Ace 2 Pro PJA110 Dual SIM 5G

OnePlus

  • $759.99
    Unit price per
Shipping calculated at checkout.


Refactoring Performance Imagination

Highlights

  • Qualcomm’s second-generation Snapdragon 8 flagship chip
  • 24GB + 1TB super memory
  • Aerospace grade Tiangong cooling system
  • Longevity version 150W super flash charge – 17 minutes to charge to 100%
  • Exclusive self-developed super-frame super-picture engine
  • Customized 1.5K Lingxi touch screen

Specs

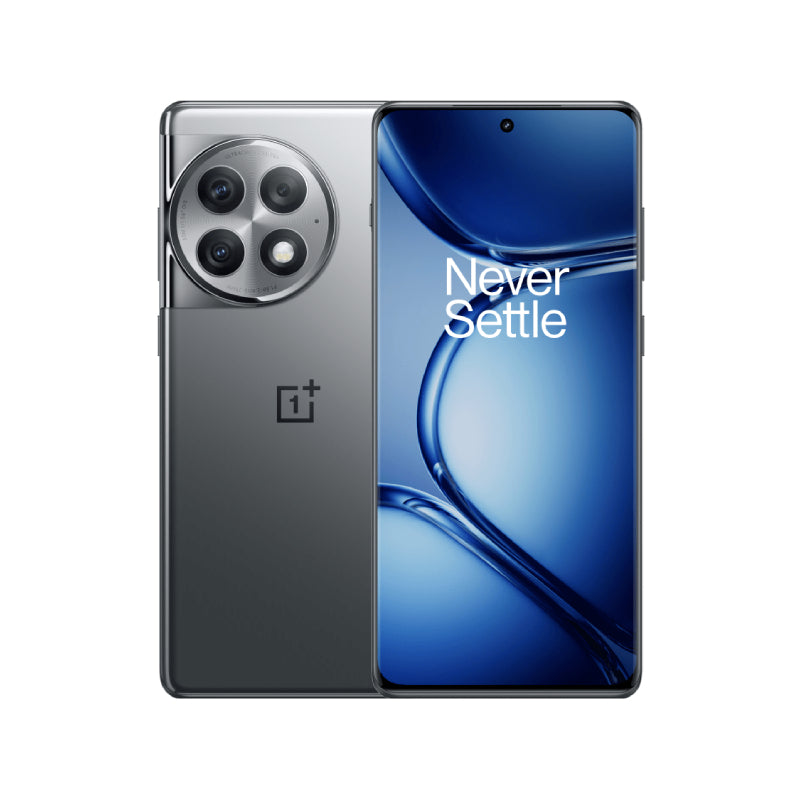

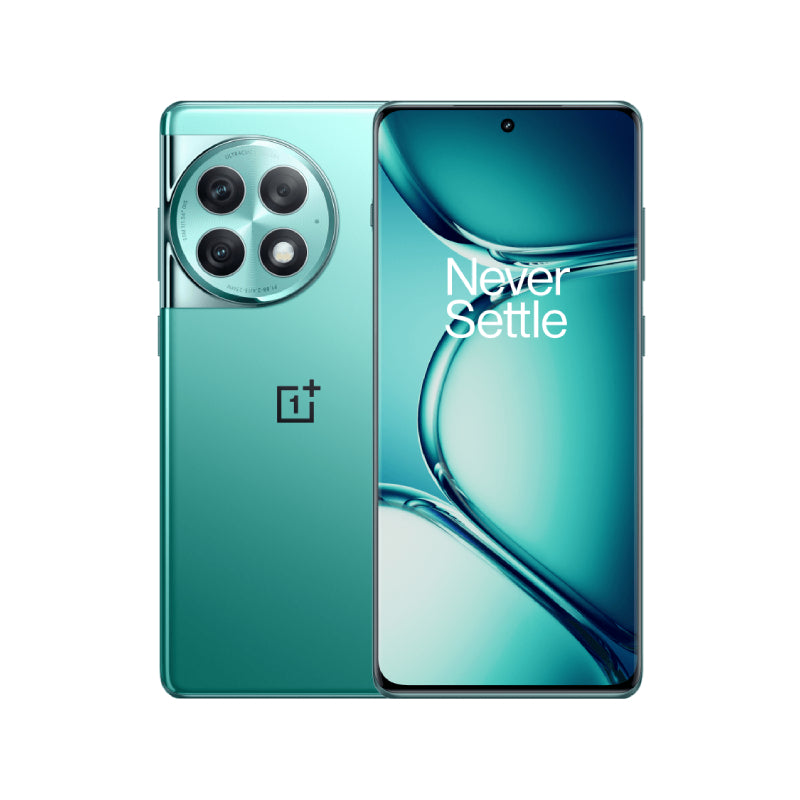

Colorways Aurora green, titanium air gray
Dimensions Height: 163.1mm
Width: 74.2mm
Thickness: 8.98mm
Weight: about 210g
Processor Platform: Second generation Snapdragon 8 mobile platform
SoC process: TSMC 4nm process
CPU frequency: eight-core processor, maximum frequency 3.2GHz
GPU: Adreno™ 740 GPU graphics processor
storage
Running memory (RAM): 12GB/16GB/24GB LPDDR5X
Body storage (ROM): 256GB/512GB/1TB UFS 4.0
Configuration combination: 12GB+256GB/16GB+512GB/24GB+1TB
Display Dimensions
6.74 inches

Screen type
3D AMOLED flexible screen

Screen-to-body ratio
93.90%

Resolution
2772×1240

Pixel density
450 PPI

Contrast
2000000:1

Refresh rate
up to 120Hz (120Hz/90Hz/60Hz/45Hz adaptive)
Brightness

Global default maximum brightness is 550nit, global excitation maximum brightness is 1200nit, local peak maximum brightness is 1600nit

Screen color
1.07 billion colors

Color gamut
Vivid mode 100% DCI-P3, Natural mode 100% sRGB

AOD support
Supported

Functions
2160Hz high-frequency PWM dimming, eye protection mode, screen color mode, automatic brightness adjustment, manual brightness adjustment, screen color temperature adjustment, ultra-clear image quality enhancement, video color enhancement, HDR video highlight mode, dark mode, screen refresh rate switching
Batteries and charging Wired fast charging: 150W super flash charging
Battery: non-removable, dual cells equivalent to 5000mAh
SUPERVOOC S full-link power management chip
Cameras Rear
Main camera
50 million pixels, IMX890, 1/1.56″, 1μm, 6P lens, f/1.8, supports OIS, supports AF, FOV 84.2°, equivalent focal length 24mm, effective focal length 5.59mm

Ultra-wide-angle camera
8 million pixels, IMX355, 1/4″, 1.12μm, 5P lens, f/2.2, FOV 112°, equivalent focal length 16mm, effective focal length 1.68mm

Macro camera
2 million pixels, OV02B10, 1/5″, 1.75μm, 3P lens, f/2.4, FOV 88.8°, equivalent focal length 22mm, effective focal length 1.77mm

Optical zoom
Does not support optical zoom, supports 10x digital zoom

OIS
Support, three-axis OIS

Flick Sensor
Support

PDAF
Support

Flash
Rear LED single color temperature dual light

Rear video
Rear 4K@60fps/30fps, 1080P@60fps/30fps, 720P@60fps/30fps
Video anti-shake supports EIS/OIS, 720P@60fps, 1080P@60fps, 4K@60fps
Video slow motion supports 1080P@240fps, 720P@240fps/480fps
Movie mode supports 4k@30fps
Time-lapse photography supports 4k@30fps, 1080P@30fps
Multi-view video supports 720P@30fps

Prefix
16 million pixels, S5K3P9, f/2.4
Front-facing video: Front-facing video supports 1080P/720P@30fps, default is 1080P@30fps (beautification is enabled by default)
Front-end functions: photo, video, panorama, portrait, night scene, time-lapse photography, beauty selfie, screen fill light, AI ID photo, cute photo

Image function
Photo, video, night scene mode, professional mode, panorama mode, time-lapse photography mode, slow motion, super text, tilt-shift mode, cute photo, movie mode, macro mode, long exposure, AI ID photo, multi-view video mode
Network and connections Cellular network
LTE/LTE-A: 4×4 MIMO; Band1/3/8/28/38/39/41 4×4 MIMO; other Bands: 2×2 MIMO
Support 4×4 MIMO antenna technology|HPUE|HO RxD

Frequency band
2G: GSM 850/900/1800/1900MHz
2G: CDMA BC0
3G: UMTS(WCDMA) bands 1/4/5/8
4G: TDD-LTE bands 34/38/39/40/41
4G: FDD-LTE bands 1/3/4/5/7/8/18/19/26/28A
5G NR: n1/n3/n5/n8/n28A/n41/n77/n78

Wi-Fi
WLAN protocol: Support Wi-Fi 7, Wi-Fi 6, Wi-Fi 5, 802.11a/b/g/n/
WLAN frequency: WLAN 2.4G/WLAN 5.1G/WLAN 5.8G
Support network overlay: Wi-Fi 2.4GHz 2×2 + Wi-Fi 5GHz 2×2 concurrent
Support WLAN Display
Wi-Fi tethering
Support network overlay: Wi-Fi 2.4GHz 2×2 + Wi-Fi 5GHz 2×2 concurrently
Support Wi-Fi 5GHz 160MHz

GPS
Satellite positioning: Support Beidou: B1l+B1C+B2a; GPS: L1+L5; GLONASS: G1; Galileo: E1+E5a; QZSS: L1+L5
Others: Support A-GPS assisted positioning, support wireless LAN and cellular network positioning

Bluetooth
Bluetooth 5.3, Bluetooth Low Energy
Bluetooth audio specifications: supports SBC, AAC, aptX HD, LDAC, aptX, LHDC
*LHDC needs to be used with OPPO Enco X series and OnePlus Buds Pro series headphones

NFC
MultifunctionNFC
NFC function: supports reading and writing NFC cards (13.56MHz NFC cards), supports HCE, supports eSE (supports 300+ city subway bus rides, supports OnePlus Pay, access control cards, car keys and many other functions. One touch, convenient Pass, secure payment.)
VoLTE
Supported

VoWiFi
Not supported

Video call
Supported
Audio Stereo dual speakers
Dual microphone
Support Dolby Atmos
Sensors Geomagnetic induction, light induction, under-screen proximity sensor, under-screen light sensor, acceleration sensor, gravity sensor, gyroscope, support step counting function, customized X-axis vibration motor, infrared remote control
Material Screen protection glass: Asahi Glass AGC
Middle frame: plastic middle frame
Back material: Corning® Gorilla® Glass 5
Interface USB connector Type:Type-C
Supports standard Type-C headphones
USB version: USB 2.0
SIM card: Dual Nano SIM
Operating system ColorOS 13.1 is based on Android 13
